Please send RFQ , we will respond immediately.

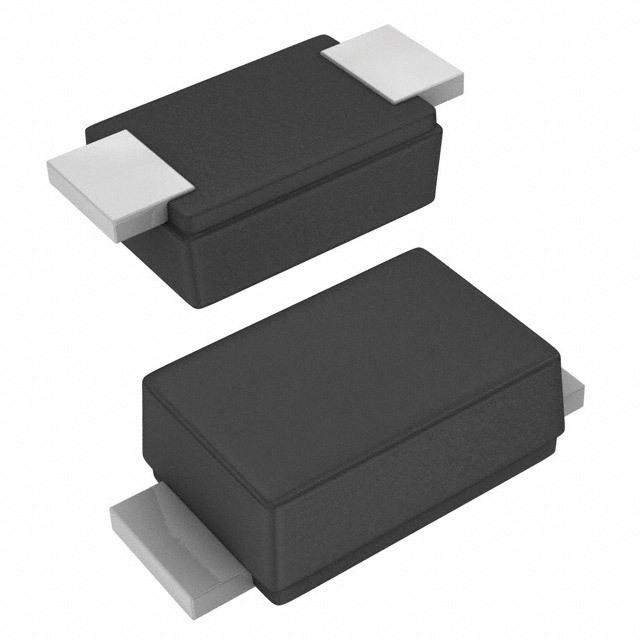

| Part Number | SMF7.5A-T13 | SMF75A-T13 | SMF8.5A-T13 | SMF6.5A-T13 | SMF7.0A-T13 |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 7.5V | 75V | 8.5V | 6.5V | 7V |
| Voltage - Breakdown (Min) | 8.33V | 83.3V | 9.44V | 7.22V | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12.9V | 121V | 14.4V | 11.2V | 12V |
| Current - Peak Pulse (10/1000µs) | 15.5A | 1.4A | 13.9A | 17.9A | 16.7A |
| Power - Peak Pulse | 200W | 200W | 200W | 200W | 200W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
