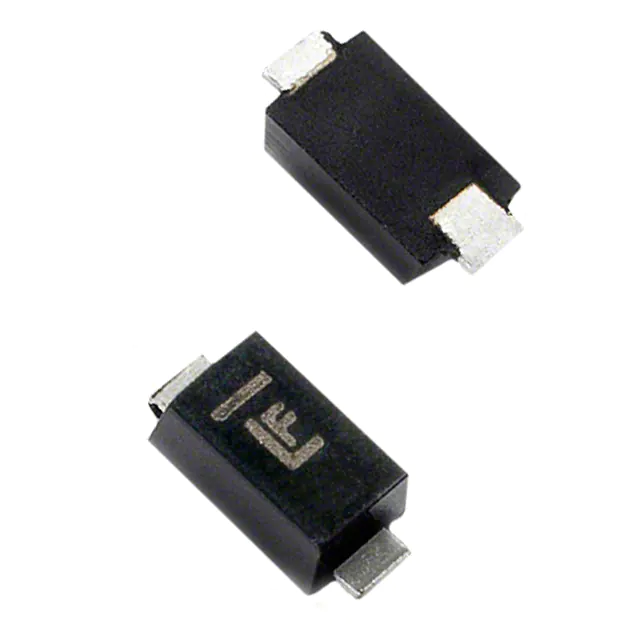

| Part Number | SMF4L26A | SMF4L28A | SMF4L36A | SMF4L26CA | SMF4L16A | SMF4L20A | SMF4L22A | SMF4L24A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | 1 | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 26V | 28V | 36V | 26V | 16V | 20V | 22V | 24V |
| Voltage - Breakdown (Min) | 28.9V | 31.1V | 40V | 28.9V | 17.8V | 22.2V | 24.4V | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 42.1V | 45.4V | 58.1V | 42.1V | 26V | 32.4V | 35.5V | 38.9V |
| Current - Peak Pulse (10/1000µs) | 9.5A | 8.8A | 6.9A | 9.5A | 15.4A | 12.3A | 11.3A | 10.3A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
