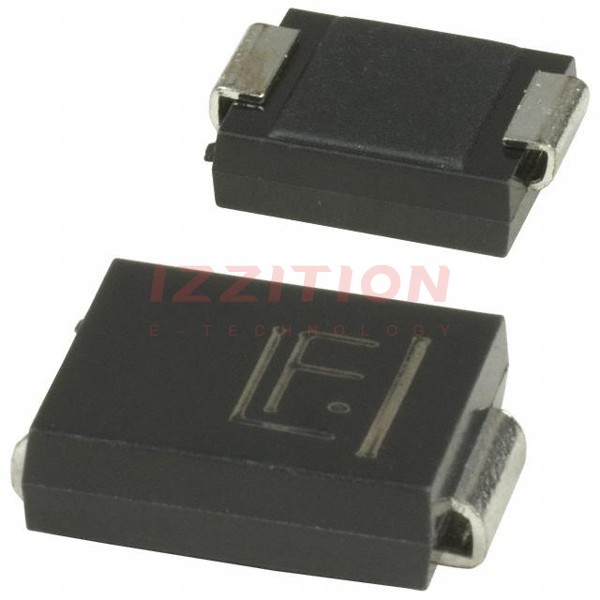

| Part Number | SMDJ14CA-HR | SMDJ14CA-HRA | SMDJ15CA-HR | SMDJ16CA-HR | SMDJ12CA-HR | SMDJ13CA-HR | SMDJ14A-HR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 14V | 14V | 15V | 16V | 12V | 13V | 14V |
| Voltage - Breakdown (Min) | 15.6V | 15.6V | 16.7V | 17.8V | 13.3V | 14.4V | 15.6V |
| Voltage - Clamping (Max) @ Ipp | 23.2V | 23.2V | 24.4V | 26V | 19.9V | 21.5V | 23.2V |
| Current - Peak Pulse (10/1000µs) | 129.3A | 129.3A | 123A | 115.4A | 150.8A | 139.5A | 129.3A |
| Power - Peak Pulse | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) |
