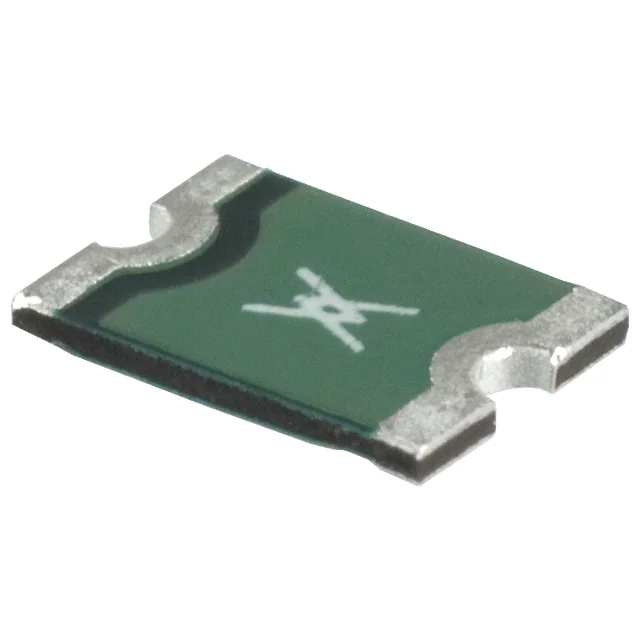

| Part Number | SMDC125F/33-2 | SMDC185F/33-2 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 33V | 33V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 1.25 A | 1.85 A |
| Current - Trip (It) | 2.5 A | 3.7 A |
| Time to Trip | 2 s | 2.5 s |
| Resistance - Initial (Ri) (Min) | - | - |
| Resistance - Post Trip (R1) (Max) | - | - |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | - | - |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.295" L x 0.201" W (7.50mm x 5.10mm) | 0.295" L x 0.201" W (7.50mm x 5.10mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.028" (0.71mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - |
