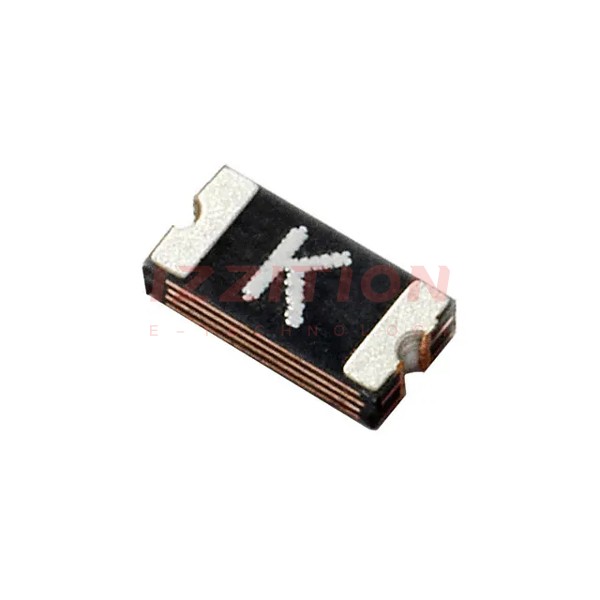

| Part Number | SMD1206P100TSA | SMD1206P150TSA | SMD1206P100TFA |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V |
| Current - Max | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 1 A | 1.5 A | 1 A |
| Current - Trip (It) | 1.8 A | 3 A | 1.8 A |
| Time to Trip | 300 ms | 1 s | 300 ms |
| Resistance - Initial (Ri) (Min) | 55 mOhms | 40 mOhms | 55 mOhms |
| Resistance - Post Trip (R1) (Max) | 210 mOhms | 120 mOhms | 210 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Lead Spacing | - | - | - |
