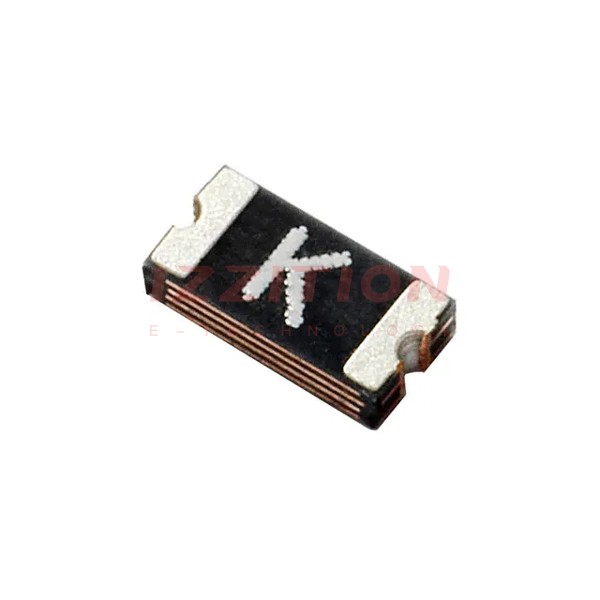

| Part Number | SMD1206P025TSA | SMD1206P035TSA | SMD1206P075TSA | SMD1206P020TSA | SMD1206P025TFA |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 6V | 6V | 16V | 16V |
| Current - Max | 40 A | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 250 mA | 350 mA | 750 mA | 200 mA | 250 mA |
| Current - Trip (It) | 500 mA | 750 mA | 1.5 A | 400 mA | 500 mA |
| Time to Trip | 80 ms | 100 ms | 200 ms | 50 ms | 80 ms |
| Resistance - Initial (Ri) (Min) | 550 mOhms | 300 mOhms | 90 mOhms | 600 mOhms | 550 mOhms |
| Resistance - Post Trip (R1) (Max) | 2.3 Ohms | 1.2 Ohms | 290 mOhms | 2.5 Ohms | 2.3 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.030" (0.75mm) | 0.024" (0.60mm) | 0.033" (0.85mm) | 0.030" (0.75mm) | 0.030" (0.75mm) |
| Lead Spacing | - | - | - | - | - |
