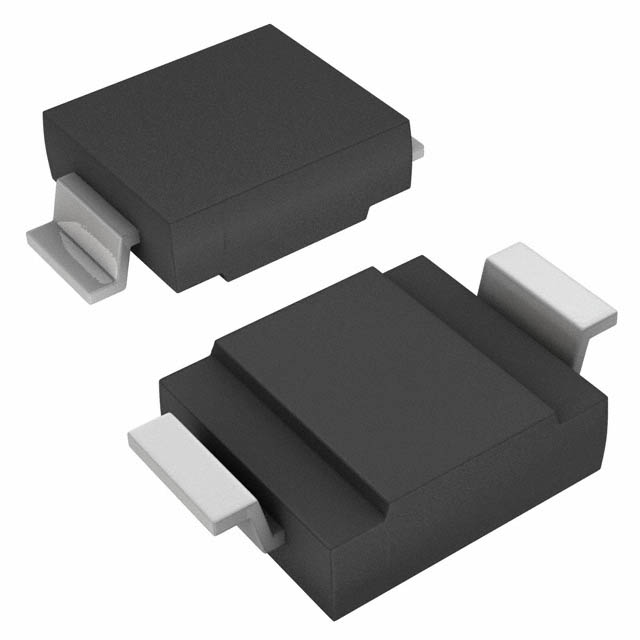

| Part Number | SMCG26A-HR | SMCG26A-HRA | SMCG26CA-HR | SMCG28A-HR | SMCG36A-HR | SMCG20A-HR | SMCG22A-HR | SMCG24A-HR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | 1 | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 26V | 26V | 26V | 28V | 36V | 20V | 22V | 24V |
| Voltage - Breakdown (Min) | 28.9V | 28.9V | 28.9V | 31.1V | 40V | 22.2V | 24.4V | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 42.1V | 42.1V | 42.1V | 45.4V | 58.1V | 32.4V | 35.5V | 38.9V |
| Current - Peak Pulse (10/1000µs) | 35.7A | 35.7A | 35.7A | 33.1A | 25.9A | 46.3A | 42.3A | 38.6A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing |
| Supplier Device Package | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) |
