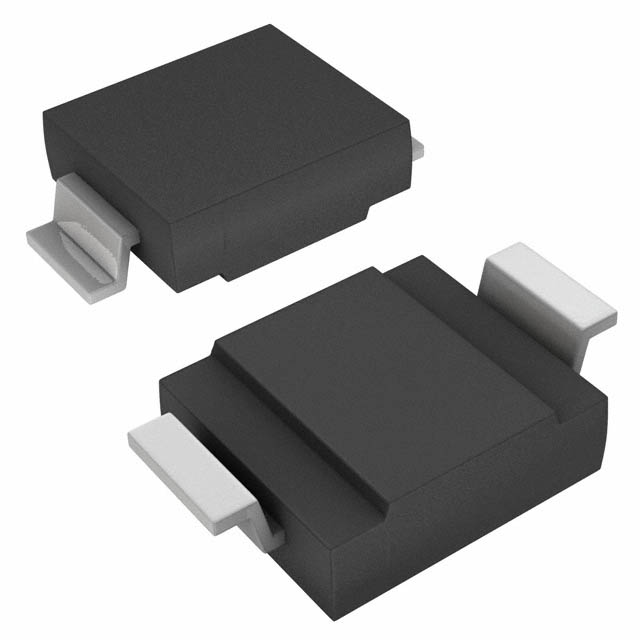

| Part Number | SMCG22CA-HRA | SMCG24CA-HRA | SMCG26CA-HRA | SMCG28CA-HRA | SMCG20CA-HRA | SMCG22A-HRA | SMCG22CA-HR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | 1 | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 22V | 24V | 26V | 28V | 20V | 22V | 22V |
| Voltage - Breakdown (Min) | 24.4V | 26.7V | 28.9V | 31.1V | 22.2V | 24.4V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V | 38.9V | 42.1V | 45.4V | 32.4V | 35.5V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 42.3A | 38.6A | 35.7A | 33.1A | 46.3A | 42.3A | 42.3A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing |
| Supplier Device Package | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) |
