| Part Number | SMCG16CA-HR | SMCG16CA-HRA | SMCG17CA-HR | SMCG18CA-HR | SMCG12CA-HR | SMCG13CA-HR | SMCG14CA-HR | SMCG15CA-HR | SMCG16A-HR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 16V | 16V | 17V | 18V | 12V | 13V | 14V | 15V | 16V |
| Voltage - Breakdown (Min) | 17.8V | 17.8V | 18.9V | 20V | 13.3V | 14.4V | 15.6V | 16.7V | 17.8V |
| Voltage - Clamping (Max) @ Ipp | 26V | 26V | 27.6V | 29.2V | 19.9V | 21.5V | 23.2V | 24.4V | 26V |
| Current - Peak Pulse (10/1000µs) | 57.7A | 57.7A | 54.4A | 51.4A | 75.4A | 69.8A | 64.7A | 61.5A | 57.7A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

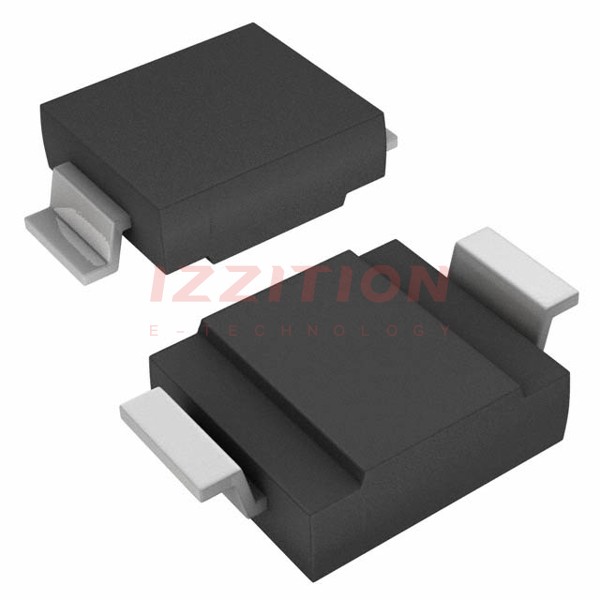

| Package / Case | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing |
| Supplier Device Package | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) |
