Please send RFQ , we will respond immediately.

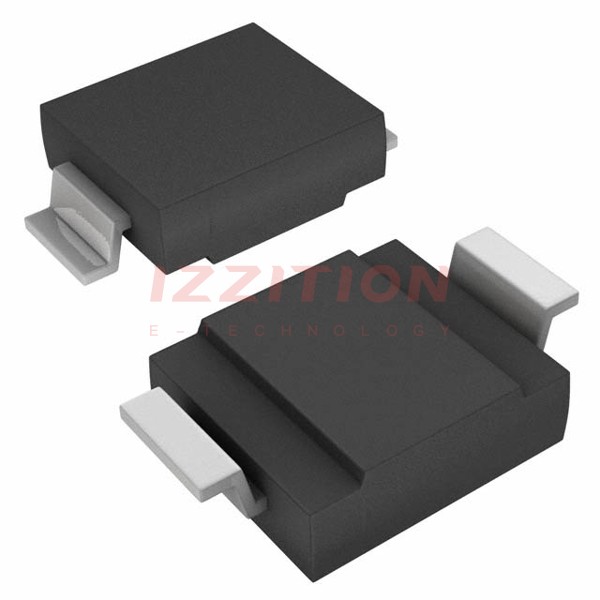

| Part Number | SMCG12CA-HRA | SMCG13CA-HRA | SMCG14CA-HRA | SMCG15CA-HRA | SMCG16CA-HRA | SMCG10CA-HRA | SMCG11CA-HRA | SMCG120A-HRA | SMCG120CA-HRA | SMCG12A-HRA | SMCG12CA-HR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | 1 | - | 1 | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 12V | 13V | 14V | 15V | 16V | 10V | 11V | 120V | 120V | 12V | 12V |
| Voltage - Breakdown (Min) | 13.3V | 14.4V | 15.6V | 16.7V | 17.8V | 11.1V | 12.2V | 133V | 133V | 13.3V | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 19.9V | 21.5V | 23.2V | 24.4V | 26V | 17V | 18.2V | 193V | 193V | 19.9V | 19.9V |
| Current - Peak Pulse (10/1000µs) | 75.4A | 69.8A | 64.7A | 61.5A | 57.7A | 88.3A | 82.5A | 7.8A | 7.8A | 75.4A | 75.4A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing | DO-215AB, SMC Gull Wing |
| Supplier Device Package | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) | DO-215AB (SMCG) |
