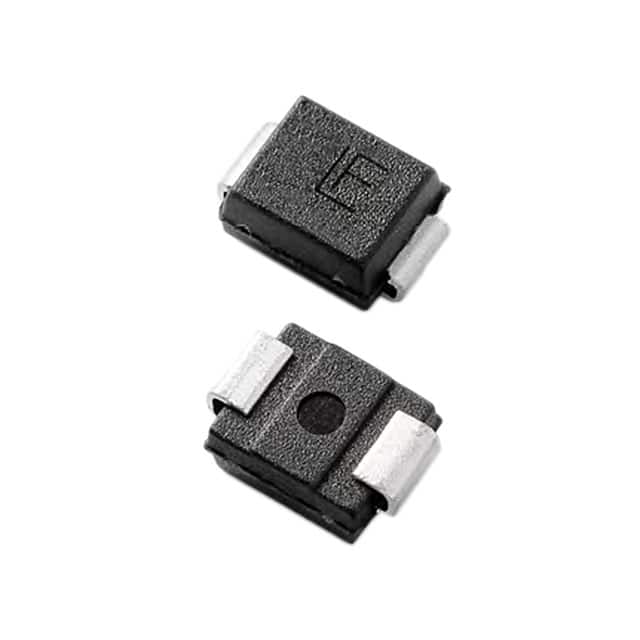

| Part Number | SMBJ26A-HRA | SMBJ26CA-HRA | SMBJ28A-HRA | SMBJ24A-HRA | SMBJ26A-HR |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 26V | 26V | 28V | 24V | 26V |
| Voltage - Breakdown (Min) | 28.9V | 28.9V | 31.1V | 26.7V | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V | 42.1V | 45.4V | 38.9V | 42.1V |
| Current - Peak Pulse (10/1000µs) | 14.3A | 14.3A | 13.3A | 15.5A | 14.3A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) |
