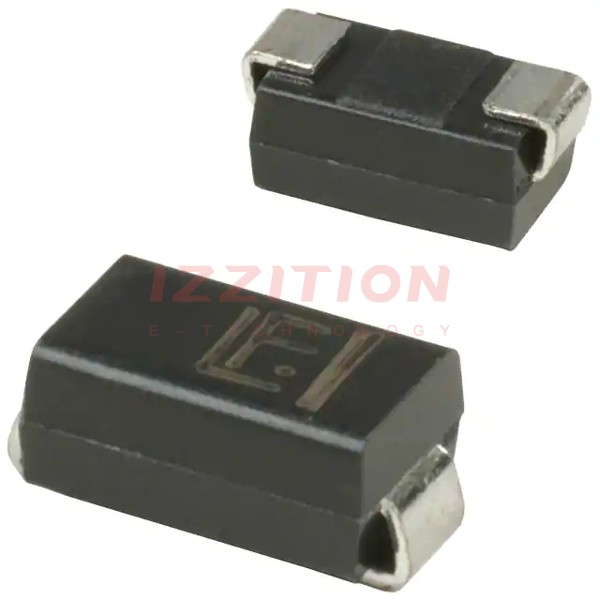

| Part Number | SMAJ90A | SMAJ90CA | SMAJ90AH | SMAJ90C | SMAJ9.0A | SMAJ90 |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Meritek | Taiwan Semiconductor Corporation | Meritek | SMC Diode Solutions | Meritek |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | - | 1 | 1 |
| Bidirectional Channels | - | 1 | - | 1 | - | - |
| Voltage - Reverse Standoff (Typ) | 90V | 90V | 90V | 90V | 9V | 90V |
| Voltage - Breakdown (Min) | 100V | 100V | 100V | 100V | 10V | 100V |
| Voltage - Clamping (Max) @ Ipp | 146V | 146V | 146V | 160V | 15.4V | 160V |
| Current - Peak Pulse (10/1000µs) | 2.7A | 2.74A | 2.1A | 2.5A | 26A | 2.5A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | - | No | - | No | - |
| Applications | General Purpose | General Purpose | Automotive | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C (TJ) | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC (SMA) | DO-214AC, SMA | DO-214AC (SMA) | DO-214AC, SMA | DO-214AC (SMA) |
| Supplier Device Package | DO-214AC (SMA) | - | DO-214AC (SMA) | - | SMA (DO-214AC) | - |
