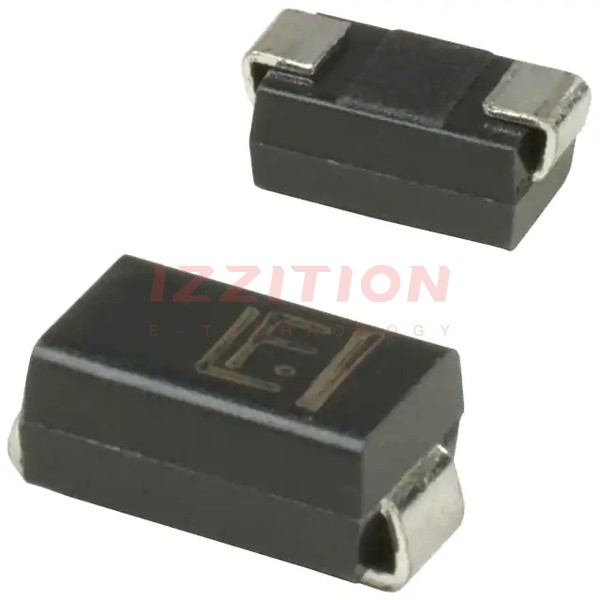

| Part Number | SMAJ70A | SMAJ75A | SMAJ70CA | SMAJ70AH | SMAJ70H | SMAJ70C | SMAJ70 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Meritek | Meritek | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Meritek | Meritek |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | 1 | - | 1 |
| Bidirectional Channels | - | - | 1 | - | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 70V | 75V | 70V | 70V | 70V | 70V | 70V |
| Voltage - Breakdown (Min) | 77.8V | 83.3V | 77.8V | 77.8V | 77.8V | 77.8V | 77.8V |
| Voltage - Clamping (Max) @ Ipp | 113V | 121V | 113V | 113V | 125V | 125V | 125V |
| Current - Peak Pulse (10/1000µs) | 3.5A | 3.31A | 3.54A | 3.5A | 3.2A | 3.2A | 3.2A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | - | - | No | No | - | - |
| Applications | General Purpose | General Purpose | General Purpose | Automotive | Automotive | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC, SMA | DO-214AC, SMA | DO-214AC (SMA) | DO-214AC (SMA) |
| Supplier Device Package | DO-214AC (SMA) | - | - | DO-214AC (SMA) | DO-214AC (SMA) | - | - |
