Please send RFQ , we will respond immediately.

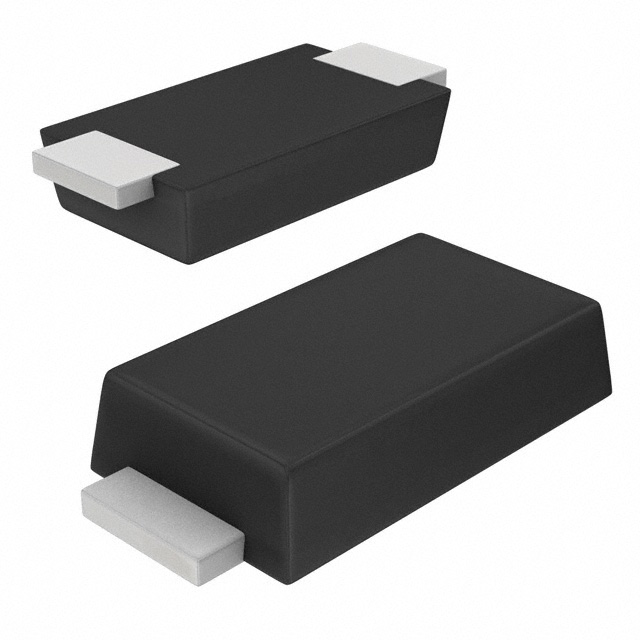

| Part Number | SMA6L60A | SMA6L90A | SMA6J60A | SMA6L10A | SMA6L160A | SMA6L30A |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 60V | 90V | 60V | 10V | 160V | 30V |
| Voltage - Breakdown (Min) | 66.7V | 100V | 66.7V | 11.1V | 178V | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 96.8V | 146V | 96.8V | 17V | 259V | 48.4V |
| Current - Peak Pulse (10/1000µs) | 6.2A | 4.2A | 6.2A | 35.3A | 1.55A | 12.4A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-214AC, SMA | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC | DO-221AC | DO-214AC (SMA) | DO-221AC | DO-221AC | DO-221AC |
