| Part Number | SMA6L10A | SMA6L11A | SMA6L16A | SMA6L110A | SMA6L130A | SMA6L150A | SMA6L15A | SMA6L12A | SMA6L120A | SMA6L60A | SMA6L180A | SMA6L160A | SMA6L90A | SMA6L30A | SMA6L13A | SMA6L14A | SMA6L170A | SMA6L100A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 10V | 11V | 16V | 110V | 130V | 150V | 15V | 12V | 120V | 60V | 180V | 160V | 90V | 30V | 13V | 14V | 170V | 100V |
| Voltage - Breakdown (Min) | 11.1V | 12.2V | 17.8V | 122V | 144V | 167V | 16.7V | 13.3V | 133V | 66.7V | 201V | 178V | 100V | 33.3V | 14.4V | 15.6V | 189V | 111V |
| Voltage - Clamping (Max) @ Ipp | 17V | 18.2V | 26V | 177V | 209V | 243V | 24.4V | 19.9V | 193V | 96.8V | 292V | 259V | 146V | 48.4V | 21.5V | 23.2V | 275V | 162V |
| Current - Peak Pulse (10/1000µs) | 35.3A | 33A | 23.1A | 3.4A | 2.9A | 1.65A | 24.6A | 30.2A | 3.2A | 6.2A | 1.40A | 1.55A | 4.2A | 12.4A | 28A | 25.9A | 1.50A | 3.7A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

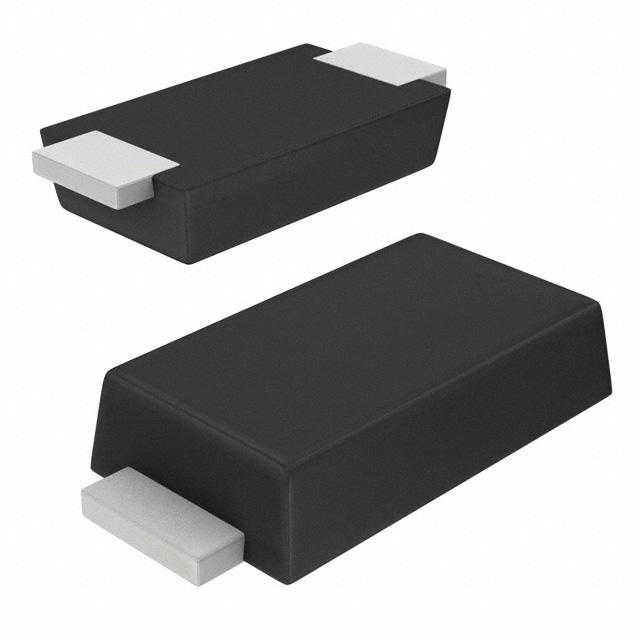

| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC |
