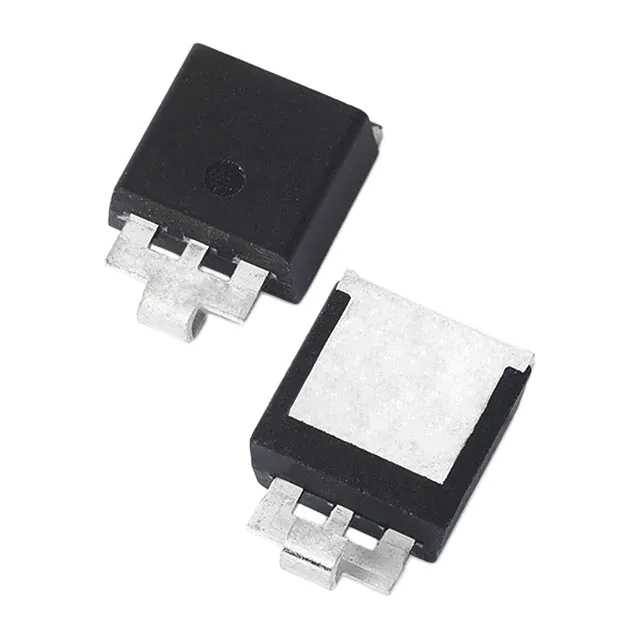

| Part Number | SLD8S22A | SLD8S28A | SLD8S27A | SLD8S24A | SLD8S26A | SLD5S22A | SLD6S22A | SLD8S12A | SLD8S20A |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 22V | 28V | 27V | 24V | 26V | 22V | - | 12V | 20V |
| Voltage - Breakdown (Min) | 24.4V | 31.1V | 29.9V | 26.7V | 28.9V | 24.4V | - | 13.3V | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 35.5V | 45.4V | 43.6V | 38.9V | 42.1V | 35.5V | - | 19.9V | 32.4V |
| Current - Peak Pulse (10/1000µs) | 197A | 154A | 160A | 180A | 167A | 101A | - | 352A | 216A |
| Power - Peak Pulse | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 3600W (3.6kW) | - | 7000W (7kW) | 7000W (7kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Supplier Device Package | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 |
