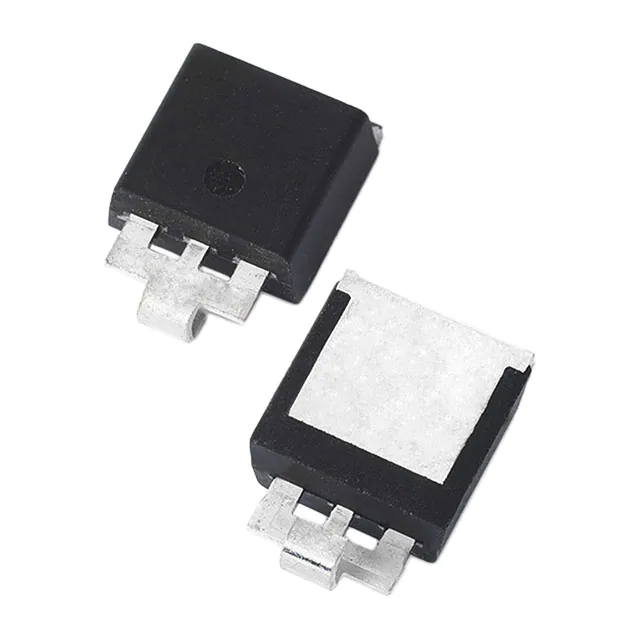

| Part Number | SLD8S12A | SLD8S22A | SLD8S18A | SLD8S15A | SLD8S17A | SLD8S14A | SLD8S16A | SLD8S13A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 12V | 22V | 18V | 15V | 17V | 14V | 16V | 13V |
| Voltage - Breakdown (Min) | 13.3V | 24.4V | 20V | 16.7V | 18.9V | 15.6V | 17.8V | 14.4V |
| Voltage - Clamping (Max) @ Ipp | 19.9V | 35.5V | 29.2V | 24.4V | 27.6V | 23.2V | 26V | 21.5V |
| Current - Peak Pulse (10/1000µs) | 352A | 197A | 240A | 286A | 253A | 301A | 269A | 326A |
| Power - Peak Pulse | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Supplier Device Package | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 |
