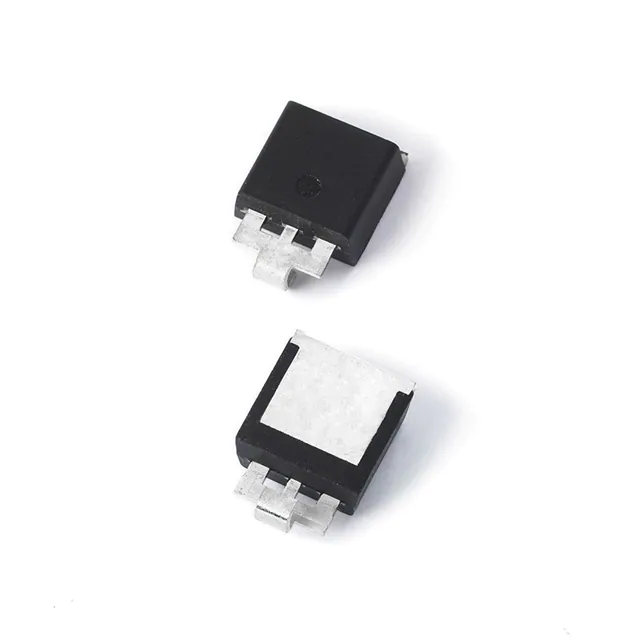

| Part Number | SLD6S24A | SLD6S27A | SLD6S26A | SLD6S28A | SLD8S24A | SLD5S24A | SLD6S14A | SLD6S20A | SLD6S22A |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 24V | 27V | 26V | 28V | 24V | 24V | 14V | 20V | - |
| Voltage - Breakdown (Min) | 26.7V | 29.9V | 28.9V | 31.1V | 26.7V | 26.7V | 15.6V | 22.2V | - |
| Voltage - Clamping (Max) @ Ipp | 38.9V | 43.6V | 42.1V | 45.4V | 38.9V | 38.9V | 23.2V | 32.4V | - |
| Current - Peak Pulse (10/1000µs) | 118A | 106A | 109A | 101A | 180A | 93A | 198A | 142A | - |
| Power - Peak Pulse | 1800W (1.8kW) | 1800W (1.8kW) | 1800W (1.8kW) | 1800W (1.8kW) | 7000W (7kW) | 3600W (3.6kW) | 1800W (1.8kW) | 1800W (1.8kW) | - |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 155°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Supplier Device Package | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 |
