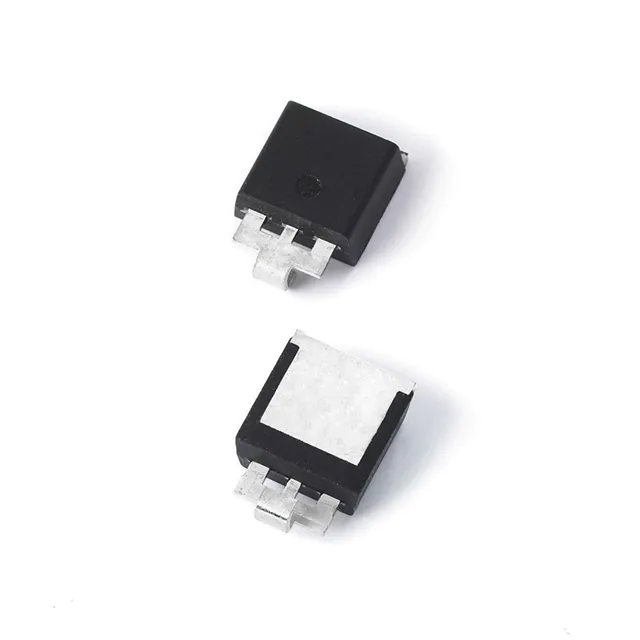

| Part Number | SLD5S20A | SLD8S20A | SLD5S22A | SLD5S27A | SLD5S28A | SLD5S30A | SLD5S26A | SLD5S40A | SLD5S24A | SLD6S20A |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 20V | 22V | 27V | 28V | 30V | 26V | 40V | 24V | 20V |
| Voltage - Breakdown (Min) | 22.2V | 22.2V | 24.4V | 29.9V | 31.1V | 33.3V | 28.9V | 44.4V | 26.7V | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 32.4V | 32.4V | 35.5V | 43.6V | 45.4V | 48.4V | 42.1V | 64.5V | 38.9V | 32.4V |
| Current - Peak Pulse (10/1000µs) | 111A | 216A | 101A | 83A | 79A | 74A | 86A | 56A | 93A | 142A |
| Power - Peak Pulse | 3600W (3.6kW) | 7000W (7kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 1800W (1.8kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 155°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Supplier Device Package | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 |
