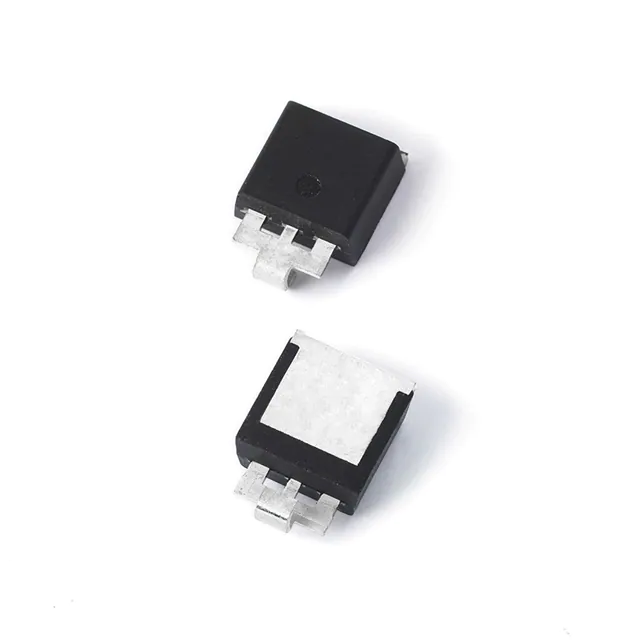

| Part Number | SLD5S14A | SLD5S18A | SLD5S16A | SLD8S14A | SLD5S24A | SLD5S15A | SLD5S17A | SLD6S14A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 14V | 18V | 16V | 14V | 24V | 15V | 17V | 14V |
| Voltage - Breakdown (Min) | 15.6V | 20V | 17.8V | 15.6V | 26.7V | 16.7V | 18.9V | 15.6V |
| Voltage - Clamping (Max) @ Ipp | 23.2V | 29.2V | 26V | 23.2V | 38.9V | 24.4V | 27.6V | 23.2V |
| Current - Peak Pulse (10/1000µs) | 155A | 123A | 138A | 301A | 93A | 148A | 130A | 198A |
| Power - Peak Pulse | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 7000W (7kW) | 3600W (3.6kW) | 3600W (3.6kW) | 3600W (3.6kW) | 1800W (1.8kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Supplier Device Package | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 | SMTO-263 |
