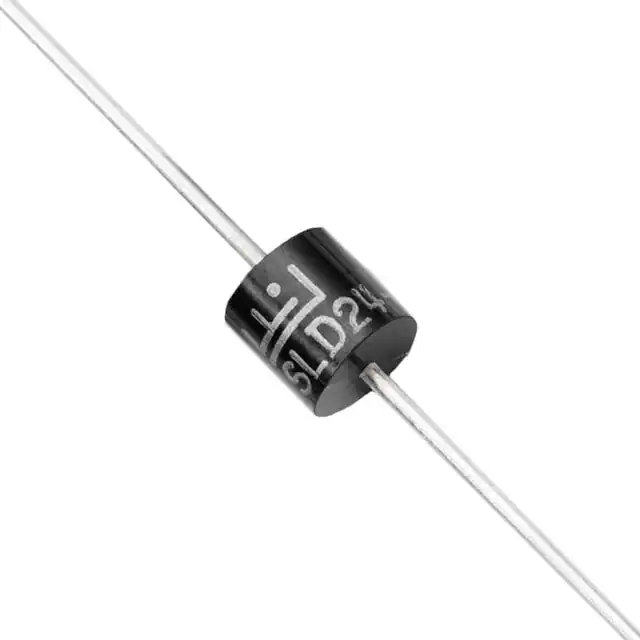

| Part Number | SLD12U-017-B | SLD16U-017-B | SLD15U-017-B | SLD13U-017-B | SLD14U-017-B | SLD17U-017-B | SLD18U-017-B | SLD22U-017-B | SLD10U-017-B | SLD11U-017-B |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 12V | 16V | 15V | 13V | 14V | 17V | 18V | 22V | 10V | 11V |
| Voltage - Breakdown (Min) | 13.3V | 18V | 16.7V | 14.4V | 15.6V | 18.9V | 20V | 24.4V | 11.8V | 12.2V |
| Voltage - Clamping (Max) @ Ipp | 19.9V | 26V | 24.4V | 21.5V | 23.2V | 27.6V | 29.2V | 35.5V | 17V | 18.2V |
| Current - Peak Pulse (10/1000µs) | 256.3A | 196.2A | 209A | 237.2A | 219.8A | 184.8A | 174.7A | 143.7A | 300A | 280.2A |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 |
