Littelfuse Inc.-SESD1004Q4UG-0020-090 - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	7V (Max)
Voltage - Breakdown (Min):	9V (Typ)
Voltage - Clamping (Max) @ Ipp:	9.2V (Typ)
Current - Peak Pulse (10/1000µs):	2A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	Automotive, HDMI
Capacitance @ Frequency:	0.2pF @ 3GHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-XFDFN
Supplier Device Package:	1004/10DFN (2.5x1.0)

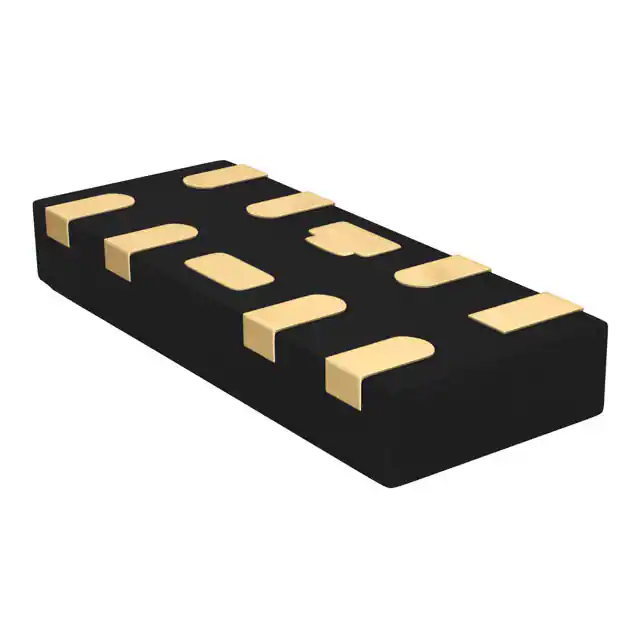

Littelfuse Inc. SESD1004Q4UG-0020-090
