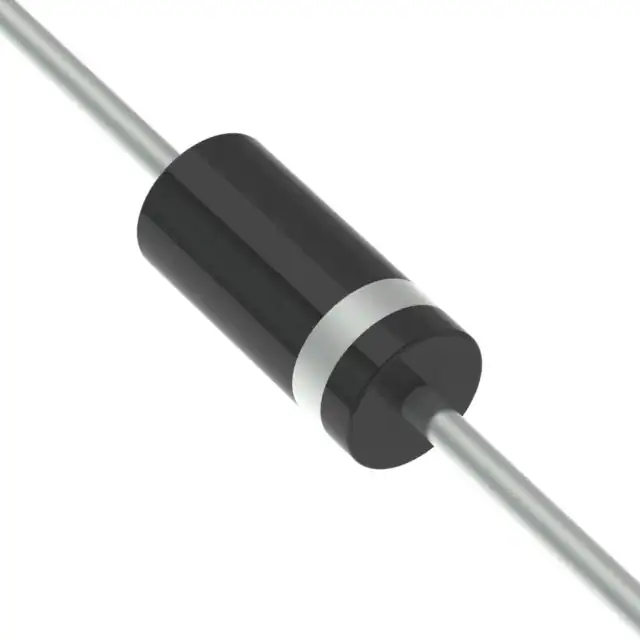

| Part Number | SA5.0A | SA5.0CA | SA5.0C | SA5.0AG | SA5.0AH | SA5.0 |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | - | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5V | 5V | 5V | 5V | 5V | 5V |
| Voltage - Breakdown (Min) | 6.4V | 6.4V | 6.03V | 6.4V | 6.4V | 6.03V |
| Voltage - Clamping (Max) @ Ipp | 9.2V | 9.2V | 9.66V | 9.2V | 9.2V | 9.66V |
| Current - Peak Pulse (10/1000µs) | 55.4A | 55.4A | 55.4A | 54.3A | 57A | 55.4A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | Automotive | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) |
