Please send RFQ , we will respond immediately.

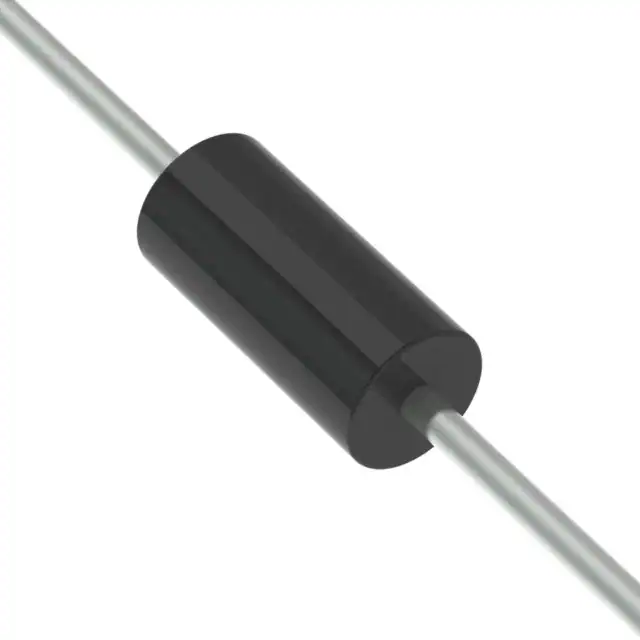

| Part Number | SA14CA | SA15CA | SA14CAH | SA12CA | SA13CA | SA14A | SA14C |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Taiwan Semiconductor Corporation | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Littelfuse Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | 1 | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 14V | 15V | 14V | 12V | 13V | 14V | 14V |
| Voltage - Breakdown (Min) | 15.6V | 16.7V | 15.6V | 13.3V | 14.4V | 15.6V | 14.76V |
| Voltage - Clamping (Max) @ Ipp | 23.2V | 24.4V | 23.2V | 19.9V | 21.5V | 23.2V | 24.36V |
| Current - Peak Pulse (10/1000µs) | 22A | 20.9A | 22.6A | 25.1A | 23.7A | 22A | 22A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | Automotive | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-15 | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) |
