Please send RFQ , we will respond immediately.

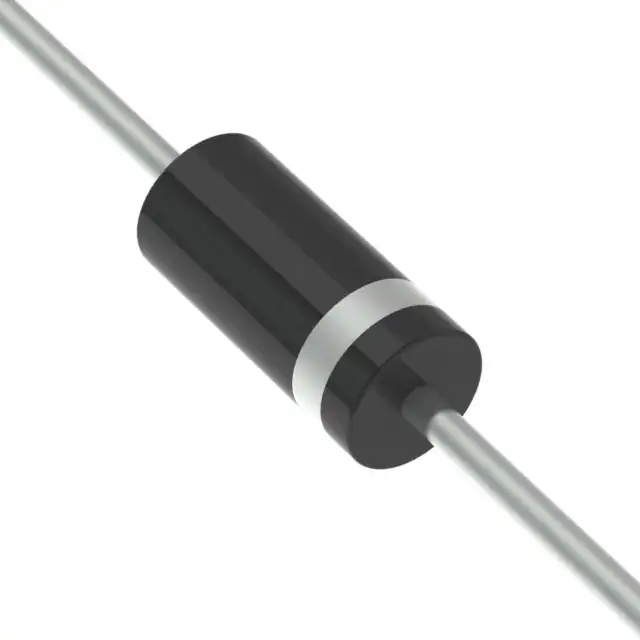

| Part Number | SA12A | SA13A | SA12AG | SA12CA | SA12AH | SA12C | SA11A | SA12 | SA120 | SA120A |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Obsolete | Active | Obsolete | Active | Obsolete | Active | Obsolete | Obsolete | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | - | 1 | - | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | 1 | - | 1 | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 12V | 13V | 12V | 12V | 12V | 12V | 11V | 12V | 120V | 120V |
| Voltage - Breakdown (Min) | 13.3V | 14.4V | 13.3V | 13.3V | 13.3V | 12.6V | 12.2V | 12.6V | 126V | 133V |
| Voltage - Clamping (Max) @ Ipp | 19.9V | 21.5V | 19.9V | 19.9V | 19.9V | 20.9V | 18.2V | 20.9V | 202.65V | 193V |
| Current - Peak Pulse (10/1000µs) | 25.6A | 23.7A | 25.1A | 25.1A | 26.3A | 25.6A | 28A | 25.6A | 2.6A | 2.6A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W | 500W | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | Automotive | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) | DO-204AC (DO-15) | Axial | DO-15 | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) |
