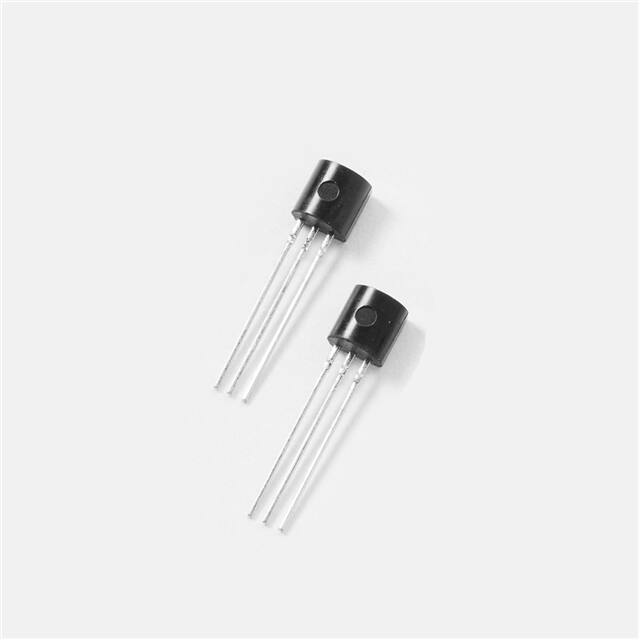

| Part Number | S8X5ECS2RP | S8X5ECSRP | S8X5ECS2AP |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Voltage - Off State | 800 V | 800 V | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV | 800 mV | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 50 µA | 100 µA | 50 µA |
| Voltage - On State (Vtm) (Max) | 1.8 V | 1.4 V | 1.8 V |
| Current - On State (It (AV)) (Max) | 300 mA | 300 mA | 300 mA |
| Current - On State (It (RMS)) (Max) | 500 mA | 500 mA | 500 mA |
| Current - Hold (Ih) (Max) | 3 mA | 3 mA | 3 mA |
| Current - Off State (Max) | 3 µA | 3 µA | 3 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A, 12A | 10A, 12A | 10A, 12A |
| SCR Type | Sensitive Gate | Sensitive Gate | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92 | TO-92 | TO-92 |
