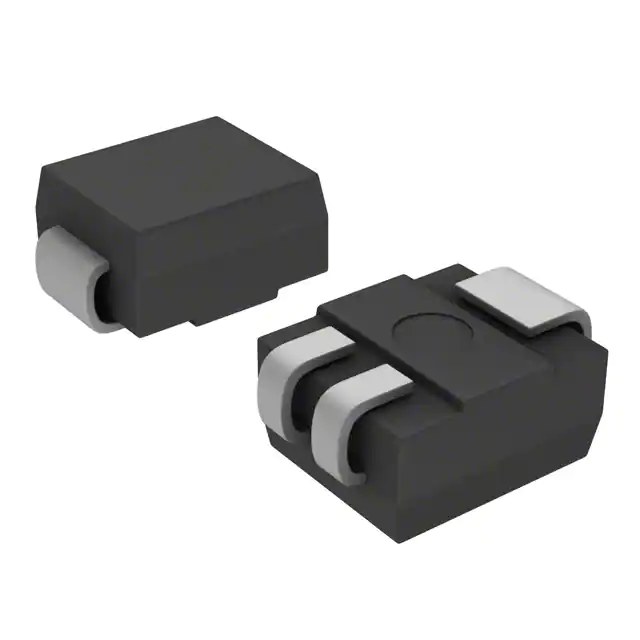

| Part Number | S4SRP | S4S1RP | S4S2RP | S4S3RP |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Voltage - Off State | 400 V | 400 V | 400 V | 400 V |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV | 800 mV | 800 mV | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 200 µA | 12 µA | 50 µA | 500 µA |
| Voltage - On State (Vtm) (Max) | 1.7 V | 1.7 V | 1.7 V | 1.7 V |
| Current - On State (It (AV)) (Max) | 510 mA | 510 mA | 510 mA | 510 mA |
| Current - On State (It (RMS)) (Max) | 800 mA | 800 mA | 800 mA | 800 mA |
| Current - Hold (Ih) (Max) | 5 mA | 5 mA | 5 mA | 8 mA |
| Current - Off State (Max) | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16A, 20A | 16A, 20A | 16A, 20A | 16A, 20A |
| SCR Type | Sensitive Gate | Sensitive Gate | Sensitive Gate | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB (3 Leads), Compak | DO-214AA, SMB (3 Leads), Compak | DO-214AA, SMB (3 Leads), Compak | DO-214AA, SMB (3 Leads), Compak |
| Supplier Device Package | Compak | Compak | Compak | Compak |
