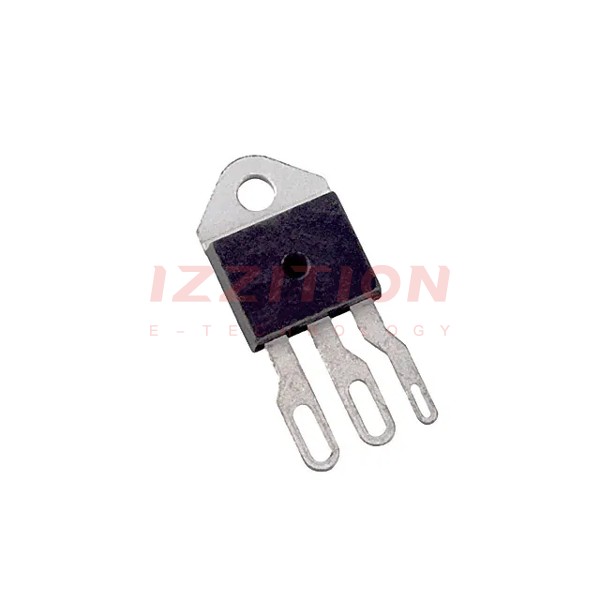

| Part Number | S4035JTP | S4065JTP | S4035KTP |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Voltage - Off State | 400 V | 400 V | 400 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 2 V | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 40 mA | 50 mA | 40 mA |
| Voltage - On State (Vtm) (Max) | 1.8 V | 1.8 V | 1.8 V |
| Current - On State (It (AV)) (Max) | 22 A | 41 A | 22 A |
| Current - On State (It (RMS)) (Max) | 35 A | 65 A | 35 A |
| Current - Hold (Ih) (Max) | 50 mA | 80 mA | 50 mA |
| Current - Off State (Max) | 10 µA | 20 µA | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 425A, 500A | 800A, 950A | 425A, 500A |
| SCR Type | Standard Recovery | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218X-3 Isolated Tab | TO-218X-3 Isolated Tab | TO-218-3 Isolated Tab, TO-218AC |
| Supplier Device Package | TO-218X Isolated | TO-218X Isolated | TO-218 Isolated Tab |
