| Part Number | S2N1RP | S2S1RP |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete |
| Voltage - Off State | 200 V | 200 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 10 mA | 12 µA |
| Voltage - On State (Vtm) (Max) | 1.6 V | 1.7 V |
| Current - On State (It (AV)) (Max) | 640 mA | 510 mA |
| Current - On State (It (RMS)) (Max) | 1 A | 800 mA |
| Current - Hold (Ih) (Max) | 30 mA | 5 mA |
| Current - Off State (Max) | 10 µA | 1 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25A, 30A | 16A, 20A |
| SCR Type | Standard Recovery | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 110°C |
| Mounting Type | Surface Mount | Surface Mount |

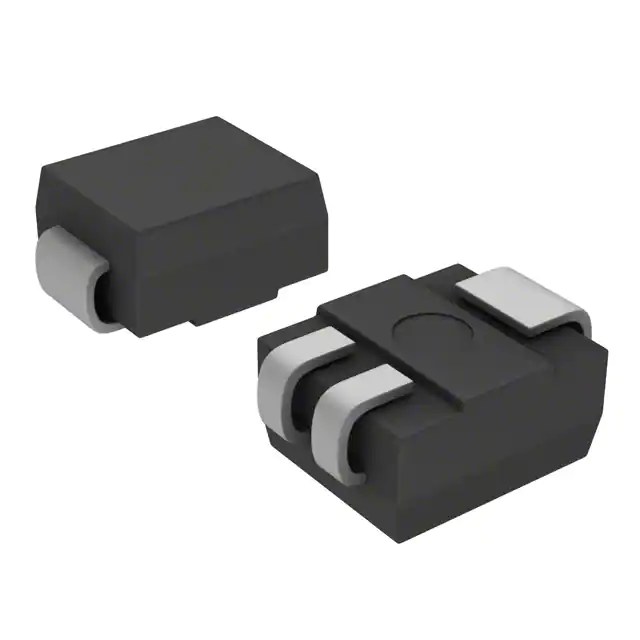

| Package / Case | DO-214AA, SMB (3 Leads), Compak | DO-214AA, SMB (3 Leads), Compak |
| Supplier Device Package | Compak | DO-214 (Compak) |
