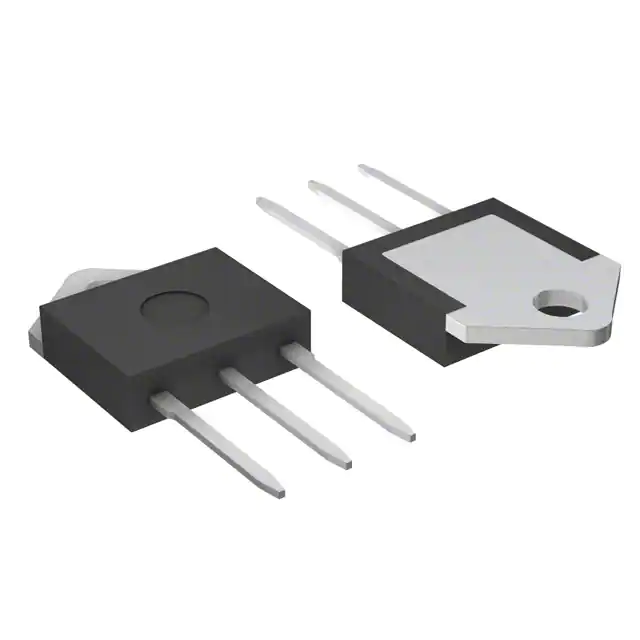

| Part Number | S2055MTP | S2055NTP | S2055RTP | S2055WTP |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Off State | 200 V | 200 V | 200 V | 200 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 40 mA | 40 mA | 40 mA | 40 mA |
| Voltage - On State (Vtm) (Max) | 1.8 V | 1.8 V | 1.8 V | 1.8 V |
| Current - On State (It (AV)) (Max) | 35 A | 35 A | 35 A | 35 A |
| Current - On State (It (RMS)) (Max) | 55 A | 55 A | 55 A | 55 A |
| Current - Hold (Ih) (Max) | 60 mA | 60 mA | 60 mA | 60 mA |
| Current - Off State (Max) | 10 µA | 10 µA | 10 µA | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A | 550A, 650A | 550A, 650A | 550A, 650A |
| SCR Type | Standard Recovery | Standard Recovery | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | TO-218-3, TO-218AC | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 | TO-218X-3 |
| Supplier Device Package | TO-218 Non-Isolated Tab | TO-263 (D2Pak) | TO-220 Non-Isolated Tab | TO-218X |
