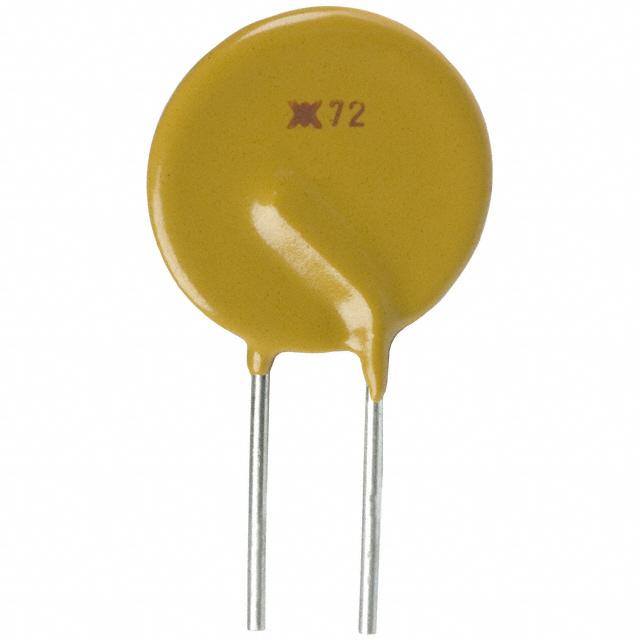

| Part Number | RXEF160 | RXEF160K | RXE160 | RXEF110 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 72V | 72V | 60V | 72V |
| Current - Max | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 1.6 A | 1.6 A | 1.6 A | 1.1 A |
| Current - Trip (It) | 3.2 A | 3.2 A | 3.2 A | 2.2 A |
| Time to Trip | 11.4 s | 11.4 s | 11.4 s | 8.2 s |
| Resistance - Initial (Ri) (Min) | 90 mOhms | 90 mOhms | 90 mOhms | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 220 mOhms | 220 mOhms | 220 mOhms | 380 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.504" Dia x 0.118" T (12.80mm x 3.00mm) |
| Height - Seated (Max) | 0.819" (20.80mm) | 0.819" (20.80mm) | 0.819" (20.80mm) | 0.689" (17.50mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.200" (5.08mm) |
