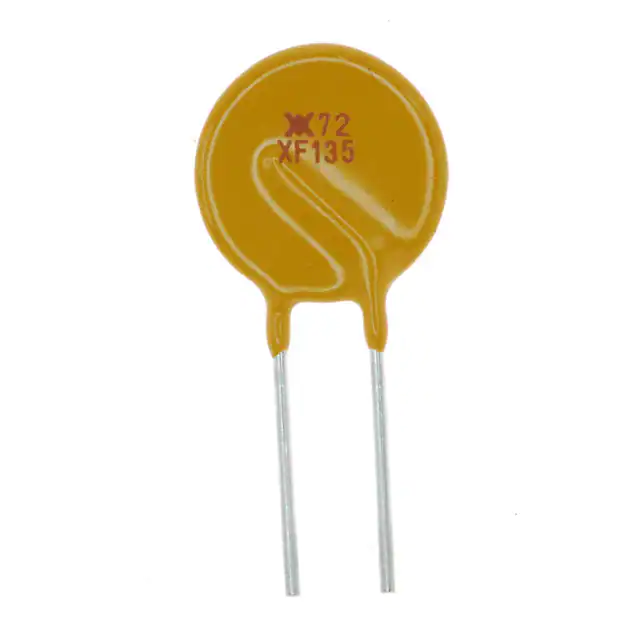

| Part Number | RXEF135-AP | RXEF185-AP | RXEF135K-AP |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 72V | 72V | 72V |
| Current - Max | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 1.35 A | 1.85 A | 1.35 A |
| Current - Trip (It) | 2.7 A | 3.7 A | 2.7 A |
| Time to Trip | 9.6 s | 12.6 s | 9.6 s |
| Resistance - Initial (Ri) (Min) | 120 mOhms | 80 mOhms | 120 mOhms |
| Resistance - Post Trip (R1) (Max) | 300 mOhms | 190 mOhms | 300 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.571" Dia x 0.118" T (14.50mm x 3.00mm) | 0.689" Dia x 0.118" T (17.50mm x 3.00mm) | 0.535" Dia x 0.118" T (13.58mm x 3.00mm) |
| Height - Seated (Max) | 0.752" (19.10mm) | 0.882" (22.40mm) | 0.776" (19.70mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
