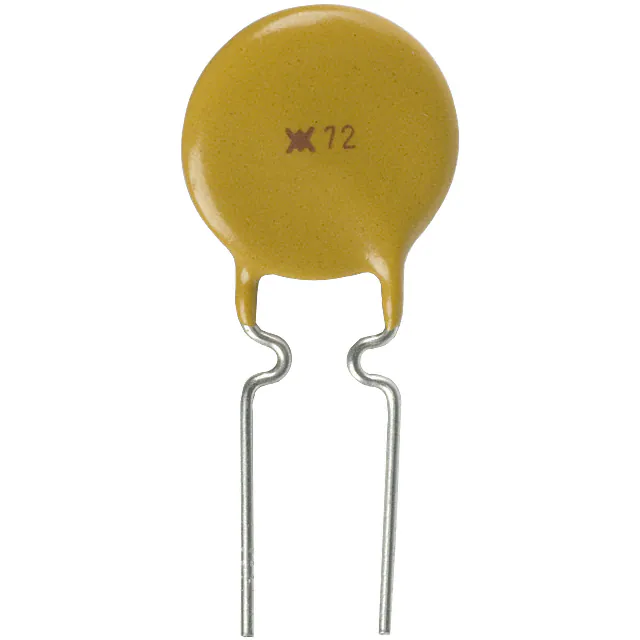

| Part Number | RXE090-2 | RXEF090-2 | RXE020-2 | RXE040-2 | RXE050-2 |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 72V | 72V | 72V | 72V | 72V |
| Current - Max | 40 A | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 900 mA | 900 mA | 200 mA | 400 mA | 500 mA |
| Current - Trip (It) | 1.8 A | 1.8 A | 400 mA | 800 mA | 1 A |
| Time to Trip | 7.2 s | 7.2 s | 2.2 s | 3.8 s | 4 s |
| Resistance - Initial (Ri) (Min) | 200 mOhms | 200 mOhms | 1.83 Ohms | 550 mOhms | 500 mOhms |
| Resistance - Post Trip (R1) (Max) | 470 mOhms | 470 mOhms | 4.4 Ohms | 1.29 Ohms | 1.17 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C | - | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) |
| Height - Seated (Max) | 0.622" (15.80mm) | 0.622" (15.80mm) | 0.461" (11.70mm) | 0.532" (13.50mm) | 0.539" (13.70mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
