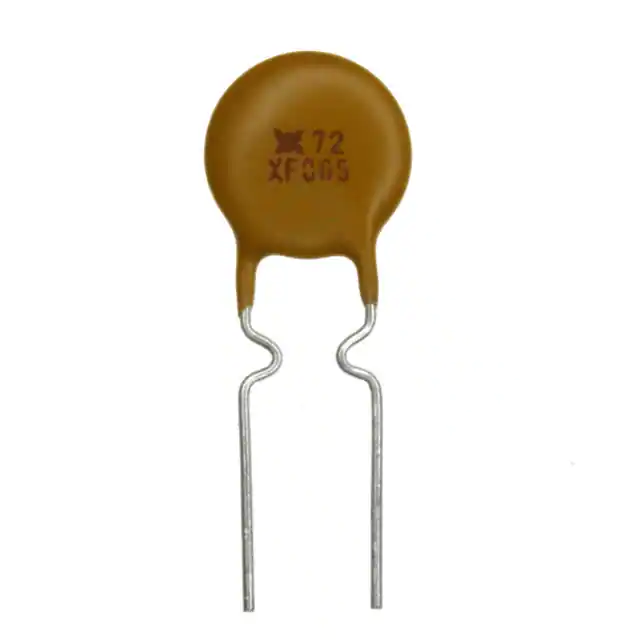

| Part Number | RXE065 | RXEF065 | RXE075 | RXE005 | RXE025 |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V | 72V | 60V | 60V | 72V |
| Current - Max | 40 A | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 650 mA | 650 mA | 750 mA | 50 mA | 250 mA |
| Current - Trip (It) | 1.3 A | 1.3 A | 1.5 A | 100 mA | 500 mA |
| Time to Trip | 5.3 s | 5.3 s | 6.3 s | 5 s | 2.5 s |
| Resistance - Initial (Ri) (Min) | 310 mOhms | 310 mOhms | 250 mOhms | 7.3 Ohms | 1.25 Ohms |
| Resistance - Post Trip (R1) (Max) | 720 mOhms | 720 mOhms | 600 mOhms | 20 Ohms | 3 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.315" Dia x 0.118" T (8.00mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.598" (15.20mm) | 0.327" (8.30mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
