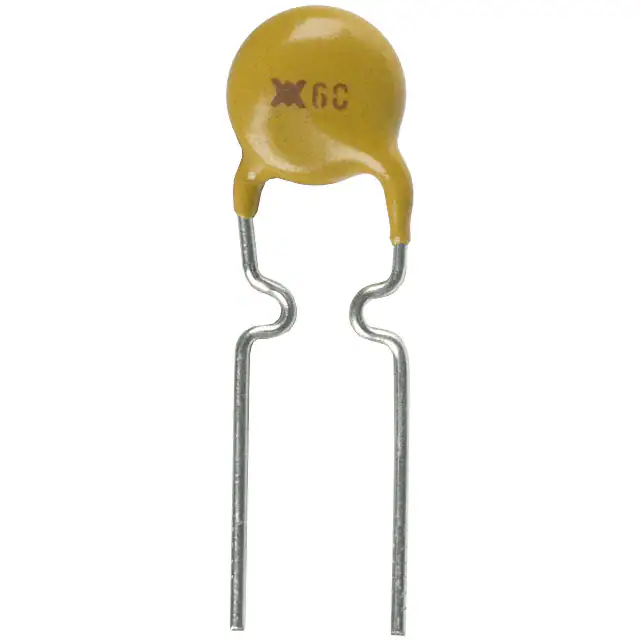

| Part Number | RXE017 | RXEF017 | RXE010 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V | 60V | 60V |
| Current - Max | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 170 mA | 170 mA | 100 mA |
| Current - Trip (It) | 340 mA | 340 mA | 200 mA |
| Time to Trip | 3 s | 3 s | 4 s |
| Resistance - Initial (Ri) (Min) | 3.3 Ohms | 3.3 Ohms | 2.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 8 Ohms | 8 Ohms | 7.5 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C | - |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.457" (11.60mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
