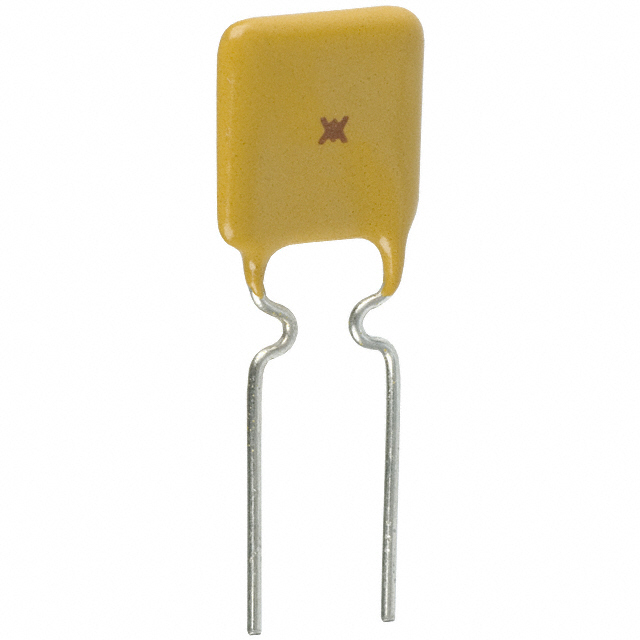

| Part Number | RUSB160 | RUSBF160 | RUSB110 | RUSB120 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 6V |
| Current - Max | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 1.6 A | 1.6 A | 1.1 A | 1.2 A |
| Current - Trip (It) | 3.2 A | 3.2 A | 2.2 A | 2 A |
| Time to Trip | 9 s | 9 s | 2.3 s | 500 ms |
| Resistance - Initial (Ri) (Min) | 300 mOhms | 30 mOhms | 50 mOhms | 70 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms | 110 mOhms | 140 mOhms | 140 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C | - | - |
| Ratings | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) |
| Height - Seated (Max) | 0.598" (15.20mm) | 0.598" (15.20mm) | 0.559" (14.20mm) | 0.461" (11.70mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.201" (5.10mm) |
