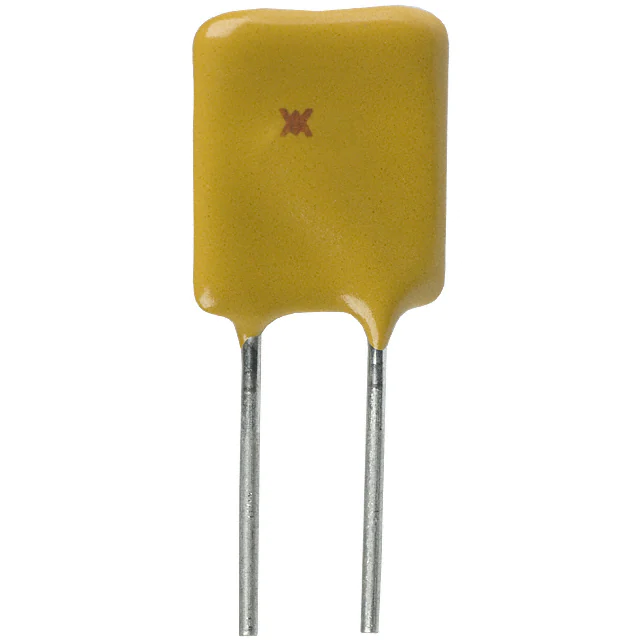

| Part Number | RUEF250S | RUEF250U | RUEF250 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V | 30V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 2.5 A | 2.5 A | 2.5 A |
| Current - Trip (It) | 5 A | 5 A | 5 A |
| Time to Trip | 10.3 s | 10.3 s | 10.3 s |
| Resistance - Initial (Ri) (Min) | 20 mOhms | 20 mOhms | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 70 mOhms | 70 mOhms | 70 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.449" L x 0.118" W (11.40mm x 3.00mm) |
| Height - Seated (Max) | 0.720" (18.30mm) | 0.720" (18.30mm) | 0.720" (18.30mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
