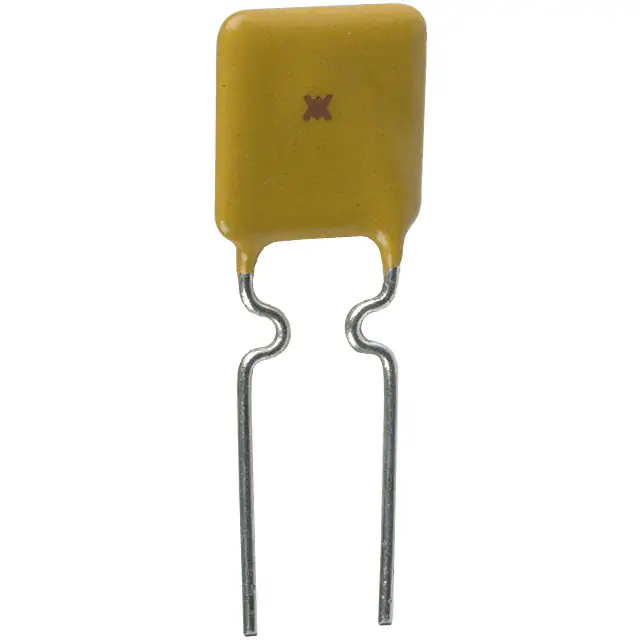

| Part Number | RUEF185 | RUEF185S | RUE185 | RUEF135 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V | 30V | 30V |
| Current - Max | 100 A | 100 A | 40 A | 100 A |
| Current - Hold (Ih) (Max) | 1.85 A | 1.85 A | 1.85 A | 1.35 A |
| Current - Trip (It) | 3.7 A | 3.7 A | 3.7 A | 2.7 A |
| Time to Trip | 8.7 s | 8.7 s | 8.7 s | 7.3 s |
| Resistance - Initial (Ri) (Min) | 30 mOhms | 30 mOhms | 30 mOhms | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 90 mOhms | 90 mOhms | 90 mOhms | 130 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.350" L x 0.118" W (8.90mm x 3.00mm) |
| Height - Seated (Max) | 0.618" (15.70mm) | 0.618" (15.70mm) | 0.618" (15.70mm) | 0.532" (13.50mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.201" (5.10mm) | 0.199" (5.05mm) |
