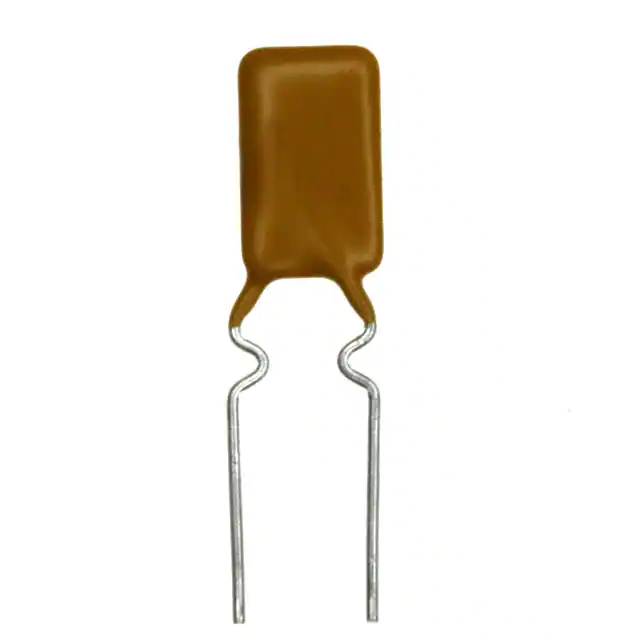

| Part Number | RUEF110-1 | RUEF110-2 | RUEF160-1 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V | 30V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.1 A | 1.1 A | 1.6 A |
| Current - Trip (It) | 2.2 A | 2.2 A | 3.2 A |
| Time to Trip | 6.6 s | 6.6 s | 8 s |
| Resistance - Initial (Ri) (Min) | 70 mOhms | 70 mOhms | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 170 mOhms | 170 mOhms | 110 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.350" L x 0.118" W (8.90mm x 3.00mm) |
| Height - Seated (Max) | 0.559" (14.20mm) | 0.559" (14.20mm) | 0.598" (15.20mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
