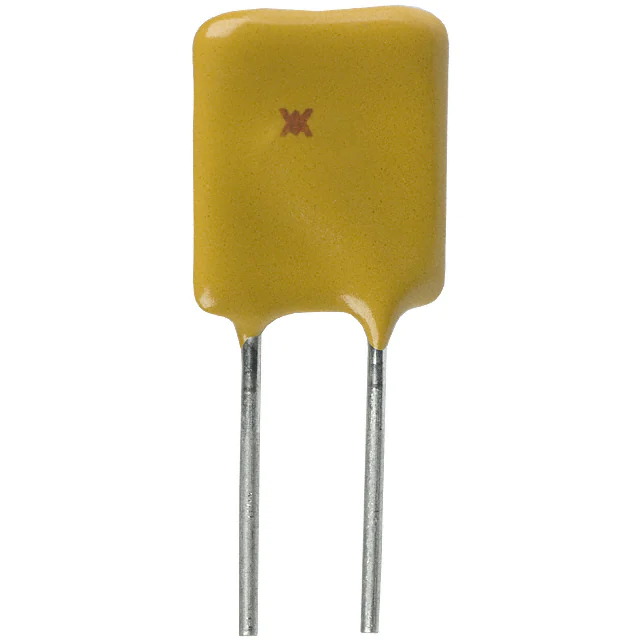

| Part Number | RHEF900-2 | RGEF900-2 | RHEF100-2 | RHEF200-2 | RHEF400-2 | RHEF600-2 |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 30V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 40 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 9 A | 9 A | 1 A | 2 A | 4 A | 6 A |
| Current - Trip (It) | 16.5 A | 15.3 A | 1.8 A | 3.8 A | 7.5 A | 10.8 A |
| Time to Trip | 10 s | 5.5 s | 5.2 s | 4.3 s | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 7.4 mOhms | 4.7 mOhms | 180 mOhms | 45 mOhms | 24 mOhms | 13 mOhms |
| Resistance - Post Trip (R1) (Max) | 17 mOhms | 13.5 mOhms | 430 mOhms | 110 mOhms | 60 mOhms | 32 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.532" L x 0.100" W (13.50mm x 2.50mm) | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.441" L x 0.122" W (11.20mm x 3.10mm) |
| Height - Seated (Max) | 1.012" (25.70mm) | 0.854" (21.70mm) | 0.535" (13.60mm) | 0.567" (14.40mm) | 0.591" (15.00mm) | 0.827" (21.00mm) |
| Thickness (Max) | - | - | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
