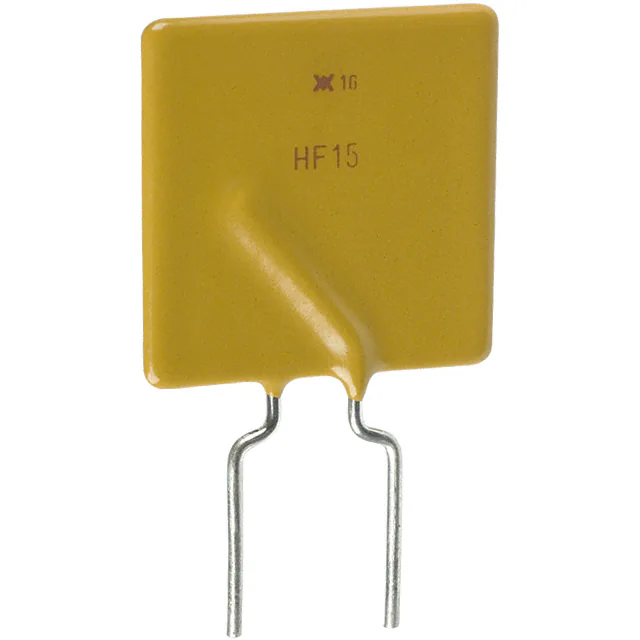

| Part Number | RHEF1500-2 | RHEF100-2 | RHEF1000-2 | RHEF1300-2 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 30V | 16V | 16V |
| Current - Max | 100 A | 40 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 15 A | 1 A | 10 A | 13 A |
| Current - Trip (It) | 28 A | 1.8 A | 18.5 A | 24 A |
| Time to Trip | 20 s | 5.2 s | 9 s | 13 s |
| Resistance - Initial (Ri) (Min) | 3.2 mOhms | 180 mOhms | 6.2 mOhms | 4.1 mOhms |
| Resistance - Post Trip (R1) (Max) | 9.2 mOhms | 430 mOhms | 15 mOhms | 10 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 0.925" L x 0.142" W (23.50mm x 3.60mm) |
| Height - Seated (Max) | 1.130" (28.70mm) | 0.535" (13.60mm) | 1.043" (26.50mm) | 1.130" (28.70mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.400" (10.15mm) | 0.199" (5.05mm) | 0.400" (10.15mm) | 0.400" (10.15mm) |
