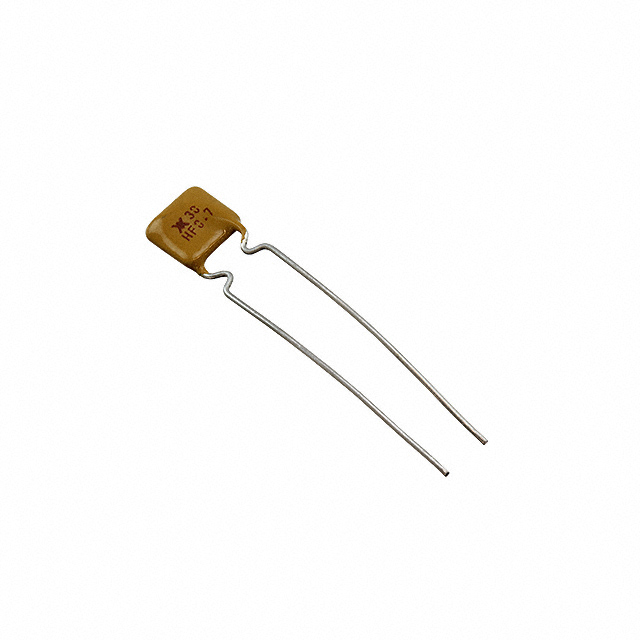

| Part Number | RHEF070U-2 | RHEF070-2 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 700 mA | 700 mA |
| Current - Trip (It) | 1.4 A | 1.4 A |
| Time to Trip | 3.2 s | 3.2 s |
| Resistance - Initial (Ri) (Min) | 300 mOhms | 300 mOhms |
| Resistance - Post Trip (R1) (Max) | 800 mOhms | 800 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.272" L x 0.118" W (6.90mm x 3.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) | 0.425" (10.80mm) |
| Thickness (Max) | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) |
