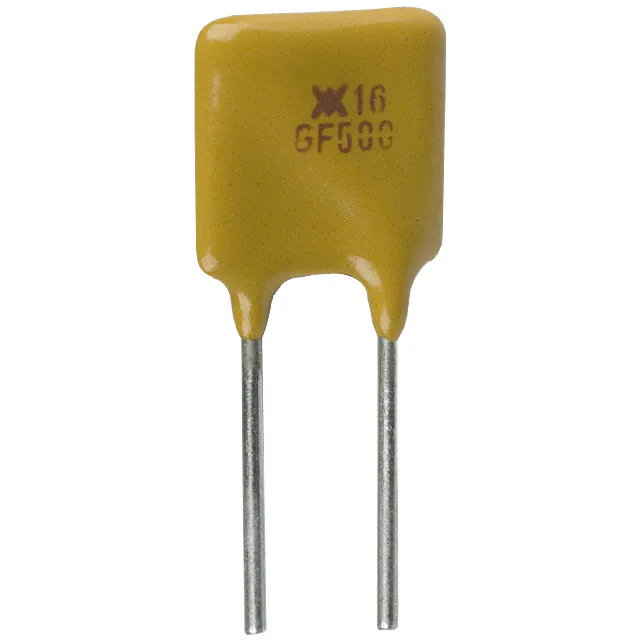

| Part Number | RGE500 | RGEF500 | RGE700 | RGE900 | RGE600 | RGE800 | RGE300 | RGE400 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 16V | 16V | 16V | 16V | 16V | 16V | 16V | 16V |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 5 A | 5 A | 7 A | 9 A | 6 A | 8 A | 3 A | 4 A |
| Current - Trip (It) | 8.5 A | 8.5 A | 11.9 A | 15.3 A | 10.2 A | 13.6 A | 5.1 A | 6.8 A |
| Time to Trip | 2 s | 2 s | 3.5 s | 5.5 s | 3.3 s | 5 s | 1 s | 1.7 s |
| Resistance - Initial (Ri) (Min) | 15 mOhms | 15 mOhms | 8 mOhms | 5 mOhms | 10 mOhms | 6 mOhms | 38 mOhms | 21 mOhms |
| Resistance - Post Trip (R1) (Max) | 34 mOhms | 34 mOhms | 20 mOhms | 14 mOhms | 28 mOhms | 18 mOhms | - | 60 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.530" L x 0.100" W (13.50mm x 2.50mm) | 0.402" L x 0.098" W (10.20mm x 2.50mm) | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.260" L x 0.098" W (6.60mm x 2.50mm) | 0.331" L x 0.098" W (8.40mm x 2.50mm) |
| Height - Seated (Max) | 0.563" (14.30mm) | 0.563" (14.30mm) | 0.776" (19.70mm) | 0.854" (21.70mm) | 0.673" (17.10mm) | 0.823" (20.90mm) | 0.433" (11.00mm) | 0.504" (12.80mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.201" (5.10mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
