Please send RFQ , we will respond immediately.

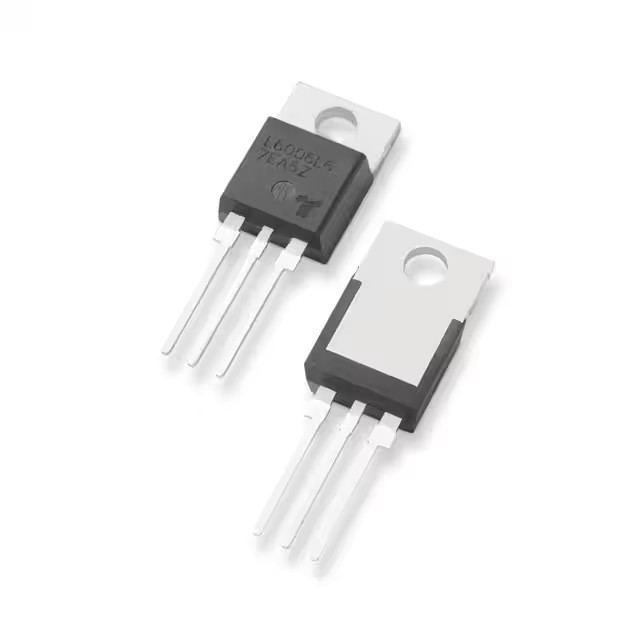

| Part Number | QJ8010RH5TP | QJ8016RH5TP | QJ8010LH5TP | QJ8010NH5TP | QJ8010R5TP | QJ8010RH3TP | QJ8010RH4TP |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Triac Type | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Standard | Alternistor - Snubberless | Alternistor - Snubberless |
| Voltage - Off State | 800 V | 800 V | 800 V | 800 V | 800 V | 800 V | 800 V |
| Current - On State (It (RMS)) (Max) | 10 A | 16 A | 10 A | 10 A | 10 A | 10 A | 10 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 100A, 120A | 167A, 200A | 100A, 120A | 100A, 120A | 100A, 120A | 100A, 120A | 100A, 120A |
| Current - Gate Trigger (Igt) (Max) | 50 mA | 50 mA | 50 mA | 50 mA | 50 mA | 10 mA | 35 mA |
| Current - Hold (Ih) (Max) | 50 mA | 50 mA | 50 mA | 50 mA | 50 mA | 15 mA | 40 mA |
| Configuration | Single | Single | Single | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 Full Pack, Isolated Tab | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220AB | TO-220AB | ITO-220AB | TO-263 (D²Pak) | TO-220AB | TO-220AB | TO-220AB |
