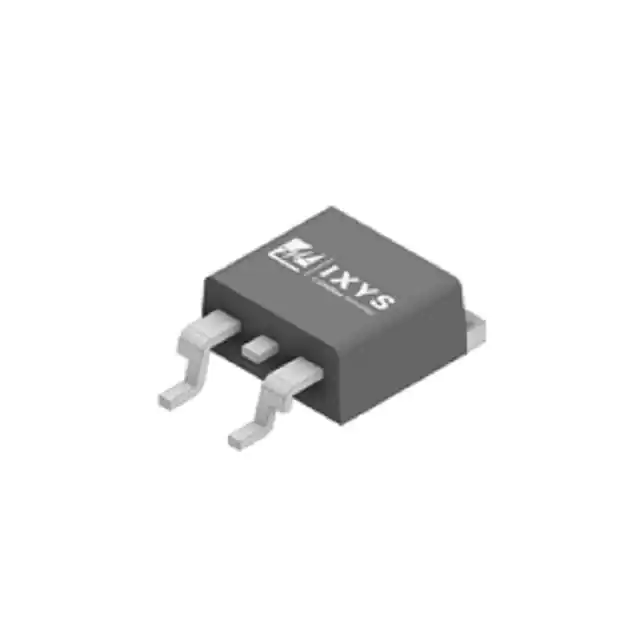

| Part Number | QJ8010N4RP | QJ8010N5RP | QJ8010NH4RP | QJ8010N4TP |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Triac Type | Standard | Standard | Alternistor - Snubberless | Standard |
| Voltage - Off State | 800 V | 800 V | 800 V | 800 V |
| Current - On State (It (RMS)) (Max) | 10 A | 10 A | 10 A | 10 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 100A, 120A | 100A, 120A | 100A, 120A | 100A, 120A |
| Current - Gate Trigger (Igt) (Max) | 35 mA | 50 mA | 35 mA | 35 mA |
| Current - Hold (Ih) (Max) | 40 mA | 50 mA | 40 mA | 40 mA |
| Configuration | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D²Pak) | TO-263 (D²Pak) | TO-263 (D²Pak) | TO-263 (D²Pak) |
