Please send RFQ , we will respond immediately.

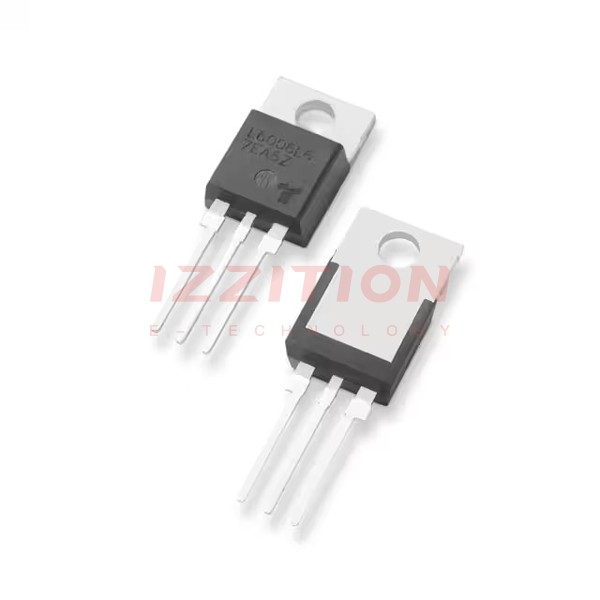

| Part Number | QJ8006LH4TP | QJ8006RH4TP | QJ8008LH4TP | QJ8006NH4TP | QJ8016LH4TP |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Triac Type | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless |
| Voltage - Off State | 800 V | 800 V | 800 V | 800 V | 800 V |
| Current - On State (It (RMS)) (Max) | 6 A | 6 A | 8 A | 6 A | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 65A, 80A | 65A, 80A | 83A, 100A | 65A, 80A | 167A, 200A |
| Current - Gate Trigger (Igt) (Max) | 35 mA | 35 mA | 35 mA | 35 mA | 35 mA |
| Current - Hold (Ih) (Max) | 35 mA | 35 mA | 35 mA | 35 mA | 50 mA |
| Configuration | Single | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 | TO-220-3 Full Pack, Isolated Tab | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AB | TO-220AB | ITO-220AB | TO-263 (D²Pak) | ITO-220AB |
