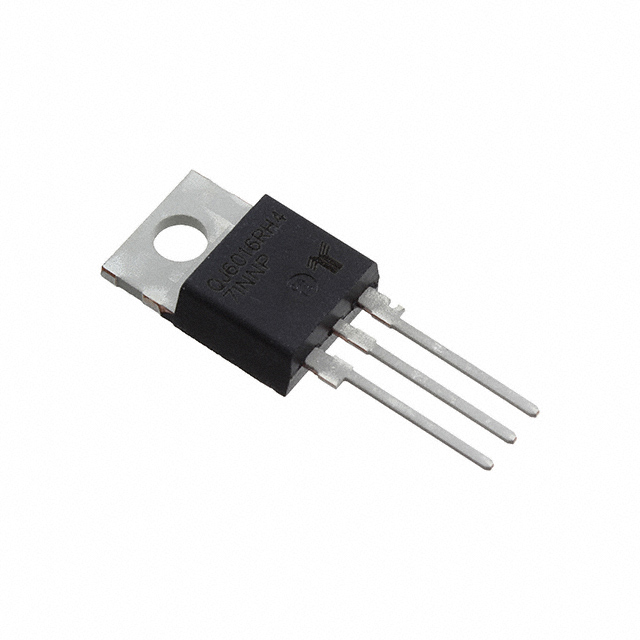

| Part Number | QJ6016RH4TP | QJ8016RH4TP | QJ6016RH6TP | QJ4016RH4TP | QJ6016LH4TP | QJ6016RH2TP | QJ6016RH3TP |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Triac Type | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless |
| Voltage - Off State | 600 V | 800 V | 600 V | 400 V | 600 V | 600 V | 600 V |
| Current - On State (It (RMS)) (Max) | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 167A, 200A | 167A, 200A | 167A, 200A | 167A, 200A | 167A, 200A | 167A, 200A | 167A, 200A |
| Current - Gate Trigger (Igt) (Max) | 35 mA | 35 mA | 80 mA | 35 mA | 35 mA | 10 mA | 20 mA |
| Current - Hold (Ih) (Max) | 50 mA | 50 mA | 70 mA | 50 mA | 50 mA | 15 mA | 35 mA |
| Configuration | Single | Single | Single | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 Isolated Tab | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220AB | TO-220AB | TO-220AB | TO-220AB | ITO-220AB | TO-220AB | TO-220AB |
