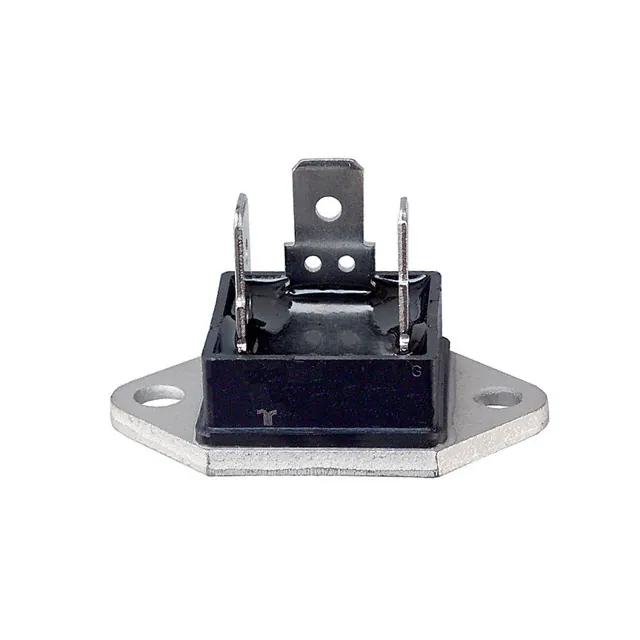

| Part Number | Q6035P5 | Q6025P5 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete |
| Triac Type | Standard | Standard |
| Voltage - Off State | 600 V | 600 V |
| Current - On State (It (RMS)) (Max) | 35 A | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.75 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 350A | 220A, 250A |
| Current - Gate Trigger (Igt) (Max) | 50 mA | 50 mA |
| Current - Hold (Ih) (Max) | 50 mA | 50 mA |
| Configuration | Single | Single |
| Operating Temperature | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Fastpak, TO-3 Base | Fastpak, TO-3 Base |
| Supplier Device Package | TO-3/TO-239 (Fastpak) | TO-3/TO-239 (Fastpak) |
