| Part Number | Q4X3RP | Q4X4RP | Q4N3RP |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Triac Type | Logic - Sensitive Gate | Standard | Logic - Sensitive Gate |
| Voltage - Off State | 400 V | 400 V | 400 V |
| Current - On State (It (RMS)) (Max) | 800 mA | 800 mA | 1 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8.3A, 10A | 8.3A, 10A | 16.7A, 20A |
| Current - Gate Trigger (Igt) (Max) | 10 mA | 25 mA | 10 mA |
| Current - Hold (Ih) (Max) | 15 mA | 25 mA | 15 mA |
| Configuration | Single | Single | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

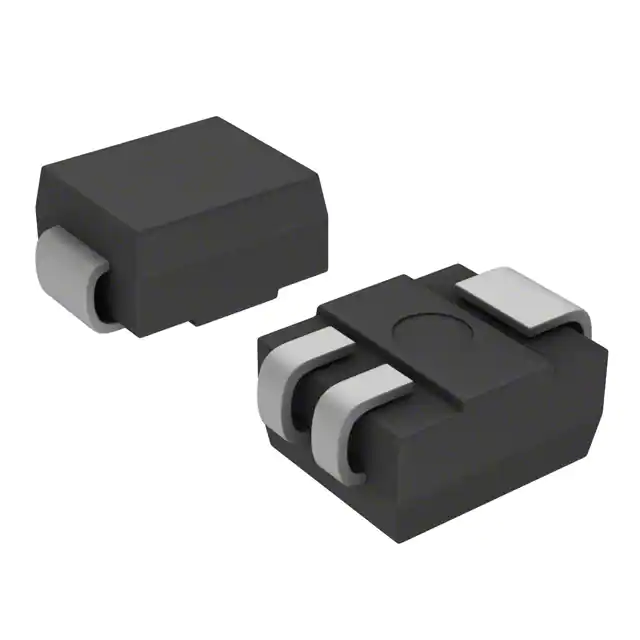

| Package / Case | DO-214AA, SMB (3 Leads), Compak | DO-214AA, SMB (3 Leads), Compak | DO-214AA, SMB (3 Leads), Compak |
| Supplier Device Package | DO-214 (Compak) | DO-214 (Compak) | DO-214 (Compak) |
