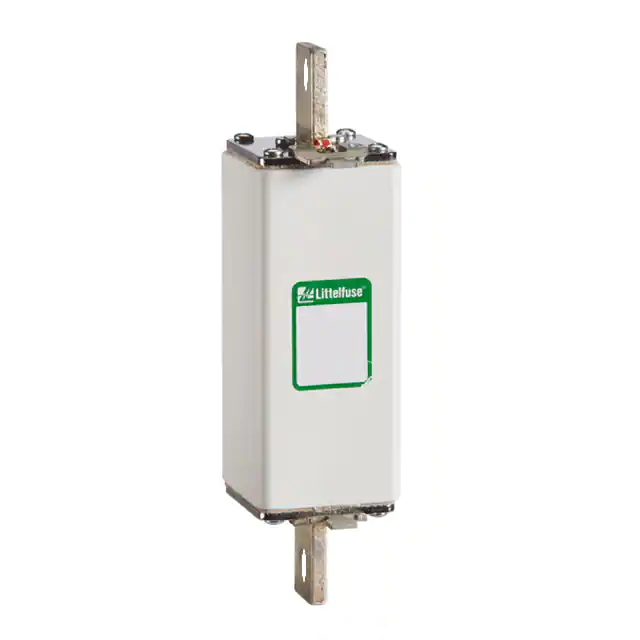

| Part Number | PSR073FS1100Z | PSR073FS1400Z | PSR073FL1100Z | PSR073FS1000Z |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder |
| Fuse Type | Square | Square | Square | Square |
| Current Rating (Amps) | 1.1kA | 1.4kA | 1.1kA | 1kA |
| Voltage Rating - AC | 1.05 kV | 1 kV | 1.05 kV | 1.05 kV |
| Voltage Rating - DC | 800 V | - | 800 V | 800 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | Indicating | Indicating | Indicating | Indicating |
| Class | - | - | - | - |
| Approval Agency | CE, cURus, UL | CE, cURus, UL | CE, cURus, UL | CE, cURus, UL |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 100kA AC, 150kA DC | 100kA | 100kA AC, 150kA DC | 100kA AC, 150kA DC |
| Package / Case | Rectangular, Blade | Rectangular, Blade | Rectangular, Blade | Rectangular, Blade |
| Size / Dimension | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) |
